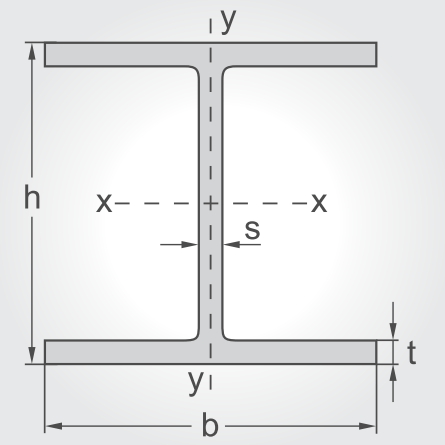

An I-beam, also known as H-beam (for universal column, UC), w-beam (for “wide flange”), universal beam (UB), rolled steel joist (RSJ), or double-T is a beam with an I or H-shaped cross-section. The horizontal elements of the “I” are known as flanges, while the vertical element is termed the “web”. I-beams are usually made of structural steel and are used in construction and civil engineering.
The web resists shear forces, while the flanges resist most of the bending moment experienced by the beam. Beam theory shows that the I-shaped section is a very efficient form for carrying both bending and shear loads in the plane of the web. On the other hand, the cross-section has a reduced capacity in the transverse direction, and is also inefficient in carrying torsion, for which hollow structural sections are often preferred.
Baltmet offers Europen standard steal beam products in steel grade S235 and S355 available in all different sizes. (other steel grades available upon request)
We stock more than 1000 tons of steel beam products at all times.
HEA beams
We offer HEA beams available in both standard and custom sizes.

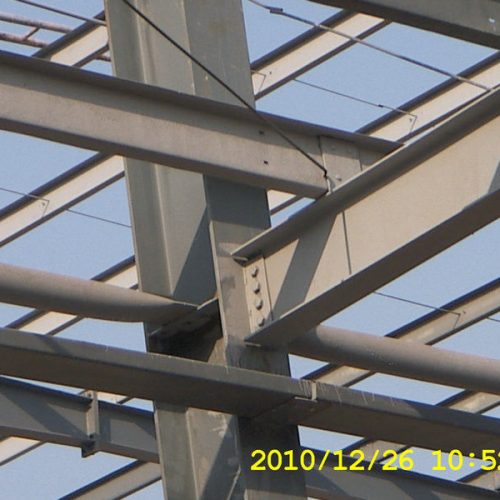

The most standard industrial purposes are:
Floor support
Bridge construction
Machine manufacturing
Oil,gas industry
Cranes
and other load bearing structures
We offer the following sizes of HEA beams
Type : 100-1000
Steel grade : S235 and S335
Cutting to any desired length and width is available upon request.

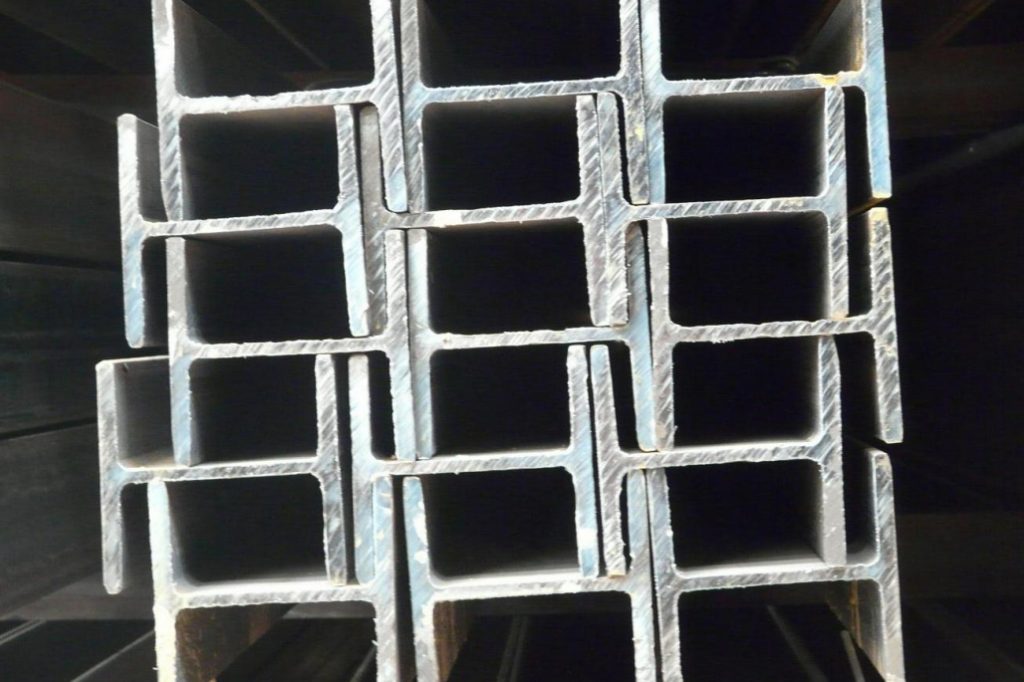

HEB beams
We offer IPE beams available in both standard and custom sizes.
The most standard industrial purposes are:
Floor support
Bridge construction
Machine manufacturing
Oil,gas industry
and other load bearing structures
We offer the following sizes of IPE beams
Type: 100-1000
Steel grade: S235 and S335
Standard length (mm): 6000 or 12000
Cutting to any desired length and width is available upon request.
IPE beams
We offer rectangular steel pipes available in standard and custom sizes.
The most standard industrial purposes are:
Columns
Supports
Beams
and other structures
We stock the following sizes:
Type: 100-600
Steel grade: S235 and S335
Standard length (mm): 6000 or 12000
Cutting to any desired length and width is available upon request.
For more in-depth technical information and purchasing terms contact ushere.
